DCC-12 is an EV Energy Management System specifically designed to allow the connection of an charging unit to a panel that is at full capacity and would otherwise need an upgrade.
Requires one double pole breaker slot available in the panel, contrary to the DCC-9.
The DCC is proudly manufactured in Montreal by Thermolec and sold across the US and CANADA.
OPERATIONS
-
Real-time reading of the total power consumption of the electrical panel
-
Detects when the total power consumption exceeds 80% of a main circuit breaker capacity and temporarily de-energizes the charger
-
Automatically re-energizes the charger when the total power consumption of the main circuit breaker capacity is less than 80% for more than 15 minutes
FEATURES
- No breaker included, maximum supply to Electric Vehicle Supply Equipement (EVSE) is 60A
- Does not affect the load calculation of a panel
- Can be mounted on the wall or ceiling
- Avoids the need of a panel upgrade
-
Silent
Gen-3 of the DCC-12 has the ability to receive and transmit load shedding instructions from an external energy management system via a dry contact input and output.

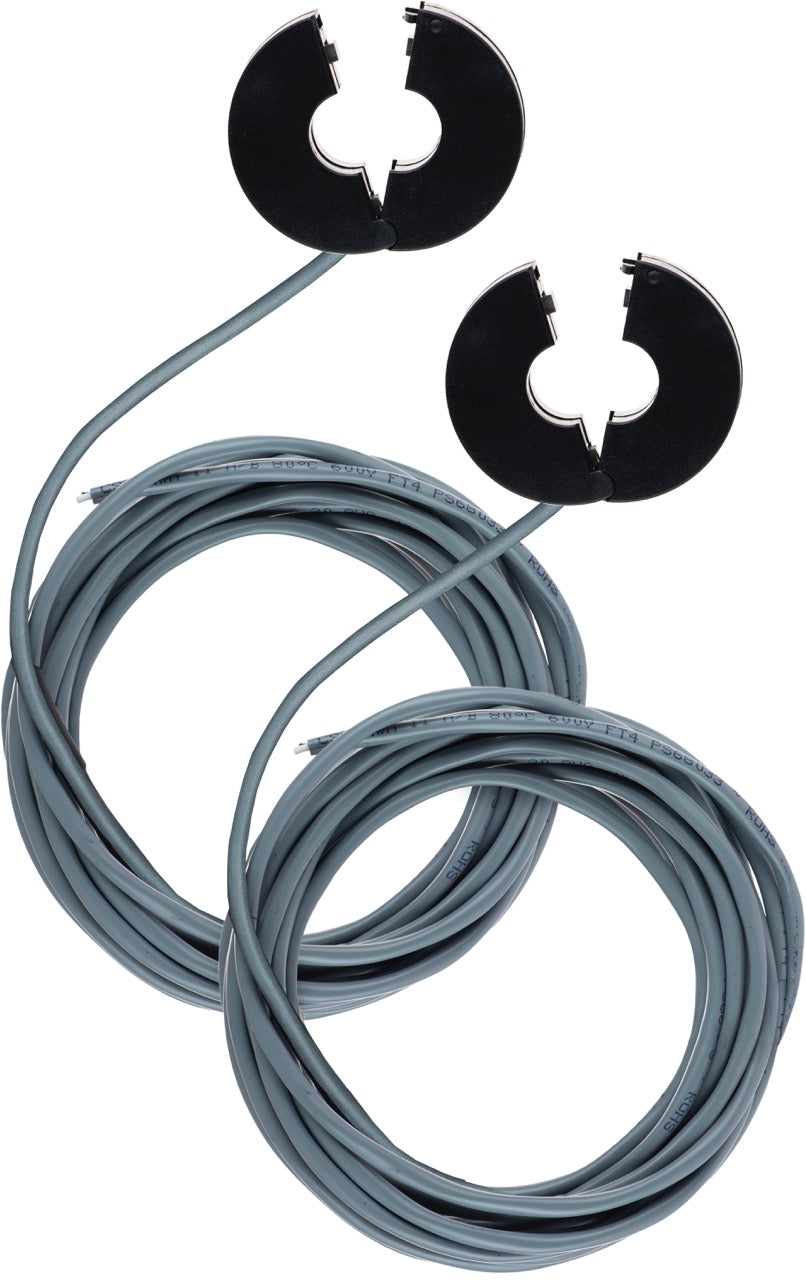

Included: Charge Controller, Power Relay (max 60A) and Split Core Current Transformers (CT).
Download the DCC-12 Specification Sheet
Download the DCC-12 Installation Manual
INSTALLATION VIDEO FOR DCC-12 AND DCC-10
